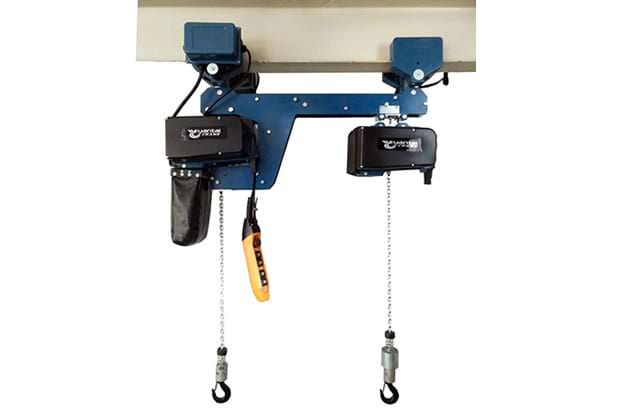

YTOC type Double Hook European Electric Chain Hoist / Electric Chain Block

Specifications

YTOC European electric chain hoist has been certified by the relevant national authority, protection class of hoist motor, electric chain hoist and travelling motor device are all IP55, push button control is with excellent moisture proof and dustproof, IP65.

Max. lifting capacity: 2.5t+2.5t

Gearbox

Maintenance-free. Working class is M6. YTOC European electric chain hoist with a rated service life of 1990 full load hours. In practical terms, this means the service life is extended by approx. 20%. The helical gearing inside the gearbox also reduces operating noise and provide smooth operation.

Brake

Maintenance-free. Because of minimum wear, adjustment is not necessary. The brake is enclosed in enclosed in the electrical panel and provides double protection from the elements.

Slip clutch

Maintenance-free. Integrated behind the brake in the power drive. It provides reliable protection against overload. Integrated slip clutch monitoring prevents permanent damage to the slip clutch.

Height adjustable control pendant cable

Therefore, the suspension height of the control pendant can be infinitely varied for a hook path range of 2-5 m and 5-8 m. the excess control cable is accommodated behind the service cover.

Control

24V contactor control, operating limit switches(upper/lower).

Steel chain

A special YT chain of high-strength. Hardened age-resistant material. Galvanized and other surface-treatments are available to protect against specific hostile environments.

Suspension bracket

YTOC hoists are supplied with short and long suspension brackets as standard and can always be attached to the super-structure with the optimal connection.

Housing

Robust and lightweight die-cast aluminum housing of compact and modern industrial design. Automotive paint, to provide more long-term protection.

Hoist motor

High-performance motor with large safety reserves even at high ambient temperatures and in prolonged operation. Using 2 hoist speed with 1:4 peed ratio and frequency control to multi-speed requirements.

Chain guide

The unit is a complete assembly consisting of the chain and chain guide which facilitates quick and easy replacement of the entire chain drive without having to remove the motor or gear parts. Downtime can be reduced significantly. The chain drive consists of highly wear-resistant materials for long service life.

Chain collector box

Suspended from a pivoting connection, is made of tough, flexible and particularly impact-resistant plastic; capacity for up to 8 m hook path, a flexible chain container for chain lengths up to 40 m as well as special lengths up to 120 m.

Bottom block

Comfortable hook device by hand for improved ergonomic handling of the hook. The hook after forging processing to make great-strength, hooks rotate by 360 degrees, a specially designed safety tongue, to ensure safe operation.
