Specifications
You may already viewed our overhead crane products; gantry crane is also one of the main crane products for Yuantai Crane. We have sorted out our gantry crane products by industry, come and see which ones are available for your industry. If you don't find your industry, contact us freely, we will recommend you suitable gantry crane.
Gantry Crane for Sale for General Industries, such as pulp and paper industry, power industry, automotive industry, manufacturing industry, etc.

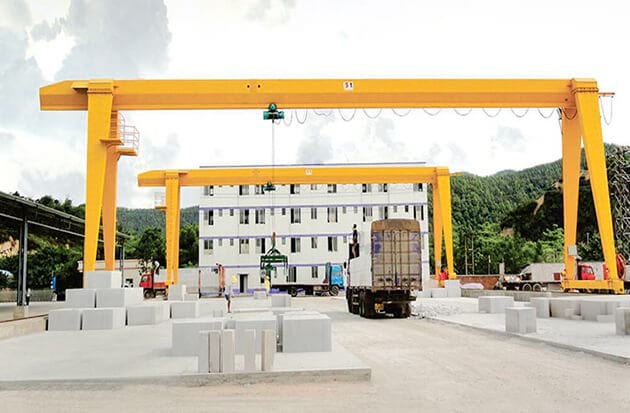

Portable Gantry Crane
- Widely used in factory, warehouse, etc.
- Lifting Capacity: 0.25~10t
- Span: 1-12m
- Lifting Height: according your needs
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Aluminum alloy portable gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 0.25~5t
- Span: 1-8m
- Lifting Height: ≤8m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
MH single girder hoist gantry crane
- Widely used in workshop, storage, port, hydroelectric power station.
- Lifting Capacity: 1~20t
- Span: 8-30m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
BMH single girder hoist semi-gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~20t
- Span: 7.5-28.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
MG double girder gantry crane
- Widely used in workshop, storage, port, hydroelectric power station.
- Lifting Capacity: 5-500t
- Span: 7.5-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
L type electric gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 5-32t
- Span: 18-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃

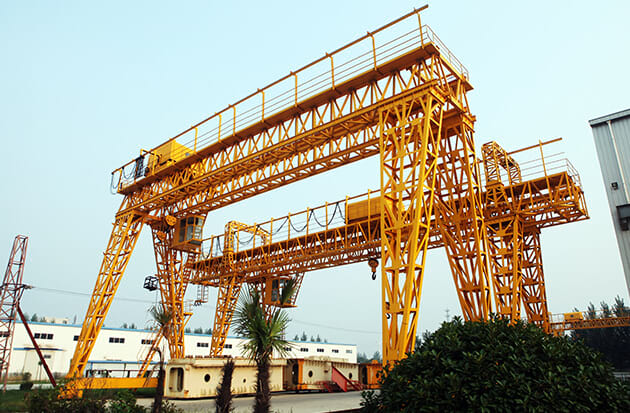

MG truss type double girder gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 5-500t
- Span: 12-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
Gantry Crane for Sale for Road & Bridge Erection
MH single girder hoist gantry crane
- Lifting Capacity: 1~20t
- Span: 8-30m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
MG double girder gantry crane
- Lifting Capacity: 5-500t
- Span: 12-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃

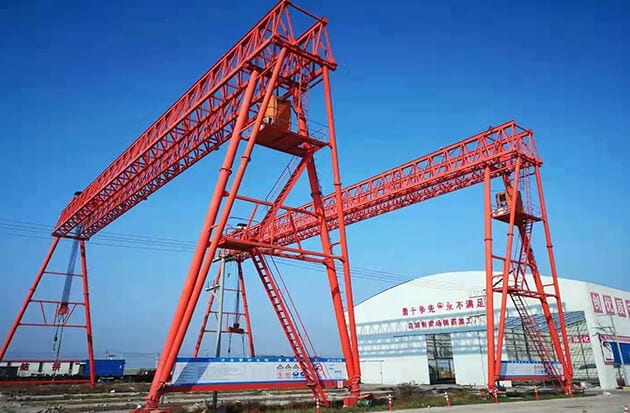

Truss type double girder gantry crane
- Lifting Capacity: 1~450t
- Span: 7.5-48m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
Gantry Crane for Sale for Container handling at Ports and Stations

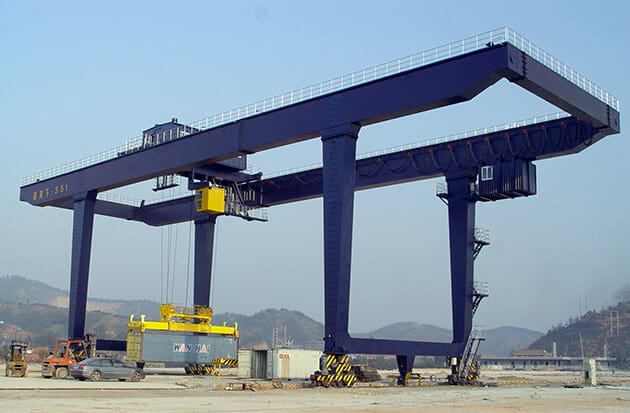

Rail Mounted Container Gantry Crane
- Lifting Capacity: 35t, 40t, 41t
- Span: 20-45m
- Lifting Height: stack two over three ~ stack six over seven (according your needs)
- Voltage: 380-660V 50/60Hz 3Phase
- Working Class: A6, A7
- Ambient Temperature: -25~40℃

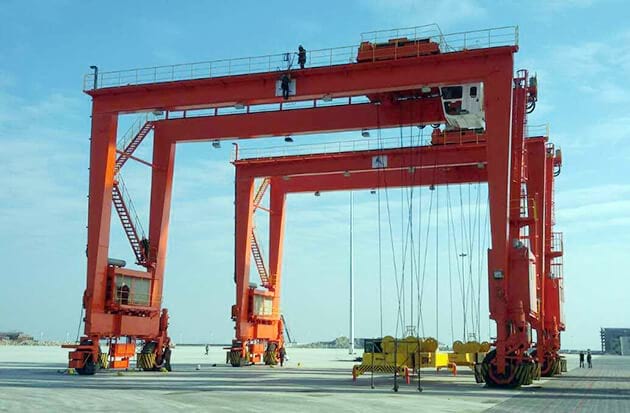

Rubber Tyre Container Gantry Crane
- Lifting Capacity: 41-65t
- Span: ≥23.47m (according your needs)
- Lifting Height: 18.2-26.4m (according your needs)
- Power supply: Diesel power generation group
- Working Class: A6, A7
- Ambient Temperature: -25~40℃

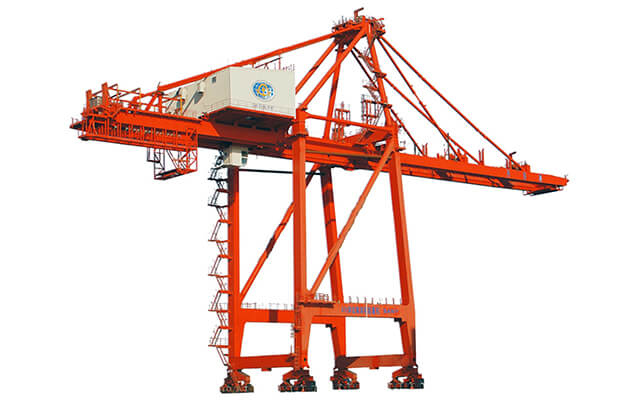

Ship-to-shore Gantry Crane
- Lifting Capacity: 35-80t
- Span: 16-42m
- Lifting Height: 10-63m (according your needs)
- Voltage: 380-660V 50/60Hz 3Phase
- Working Class: A6, A7, A8
- Ambient Temperature: -25~40℃

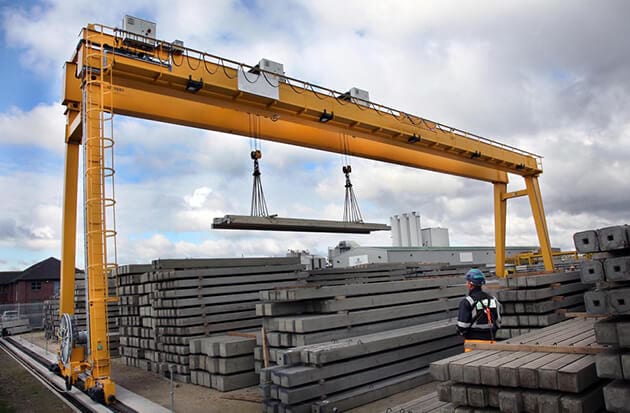

Gantry Crane for Sale for Stone and Precast Industry
MH single girder hoist gantry crane
- Lifting Capacity: 1~20t
- Span: 8-30m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
MG double girder gantry crane
- Lifting Capacity: 5-500t
- Span: 12-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
Parameters
