Specifications
What is Factory Crane
From the name, you can see that factory crane means the crane systems used in a factory. Almost all factories are equipped with factory crane, maybe you saw them before, but couldn't name them. Factory crane can reduce production cost and improve production efficiency. It can make the production process mechanized and automated and is an indispensable part of modern production.
Factory cranes can operate in a variety of ways. It may span the entire plant and run on the top of the plant, also maybe run on the ground, or it may run on the side of the plant.
Single Girder Factory Overhead Crane
Double Girder Factory Gantry CraneEffects of Factory Crane
- Save labor costs because this device effectively replaces the work of many workers, does not need many workers at the same time.
- Improve labor productivity because the lifting process has reduced time and can lift a very large volume of products at once.
- Helping businesses always ensure work progress, can use cranes whenever needed.
- Low investment cost, high rate of return, easy installation and renovation.
Popular Factory Crane Types
There are 4 popular factory crane types which can meet almost all the working conditions for industries. They are factory overhead crane, factory gantry crane, factory jib crane and factory monorail crane. Let's check all the details, you will be able to find the suitable factory crane for your factory.
Factory Crane Types: Factory Overhead Crane
Factory overhead crane is one of the most popular types of factory crane. They are running on the crane rails which are supported by columns or walls. Sometimes, they can span the entire plant, sometimes they only cover a part of the plant, as the working conditions and usage are different.
For normal factory use, general single girder factory overhead crane (capacity up to 20 tons) and double girder factory overhead crane (capacity up to 500 tons) are able to finish all the lifting tasks. But for some special industries, they have to use special factory cranes to ensure safety, such as explosion-proof factory overhead crane, ladle factory overhead cranes. Below are the factory overhead cranes Yuantai Crane supply.
Single Girder Factory Overhead Crane
LD type single girder factory ovehead crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~32t
- Span: 7.5-28.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
HD type single girder factory ovehead crane
- Designed with European FEM/DIN standard.
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~20t
- Span: ≧6m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5
- Ambient Temperature: -25~40℃
LDP type low headroom factory overhead crane
- Designed for low headroom workshop application
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~20t
- Span: 7.5-28.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
LZ type single girder grab factory overhead crane
- Lifting Capacity: 1~20t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
LB type single girder explosion-proof factory overhead crane
- Lifting Capacity: 1~20t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Explosion-proof Grade: ExdⅡBT4/CT4
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Single Girder Underhung Factory Overhead Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~10t
- Span: ≤20m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Double Girder Factory Overhead Crane
LH type double girder factory ovehead crane
- Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
- Lifting Capacity: 1~63t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4, A5
- Ambient Temperature: -25~40℃
QDX type double girder factory ovehead crane
- Designed with FEM/DIN standards.
- Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
- Lifting Capacity: 1~100t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
QD type double beam factory crane
- Designed with European FEM/DIN standard.
- General handling equipment.
- Lifting Capacity: 1~550t
- Span: 10.5-35.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A4, A5, A6, A7
- Ambient Temperature: -25~40℃
QE type double trolley factory overhead crane
- Equipped with two trollies.
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: (2.5+2.5)~(200+200)t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
QC type double girder electromagnetic factory overhead crane
- Lifting Capacity: 1~32t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
QDY type Ladle factory overhead crane, double girder factory crane
- Lifting Capacity: 1~500t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A7
- Ambient Temperature: -10~60℃
QZ type double girder factory grab overhead crane
- Lifting Capacity: 1~25t
- Span: 7.5-31.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A6, A7
- Ambient Temperature: -25~40℃
QB type double girder explosion-proof factory overhead crane
- Lifting Capacity: 5-75t
- Span: 10.5-35.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Explosion-proof Grade: ExdⅡBT4/CT4
- Working Class: A4, A5
- Ambient Temperature: -25~40℃
Double Girder Underhung Factory Overhead Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~16t
- Span: ≤20m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Factory Crane Types: Factory Gantry Crane
Factory gantry crane is a type of crane which run on the ground. It has several types according the crane structure and travelling ways, such as portable gantry crane, single girder factory gantry crane travelling on the crane rails, double girder full type factory gantry crane and semi portal factory gantry crane.

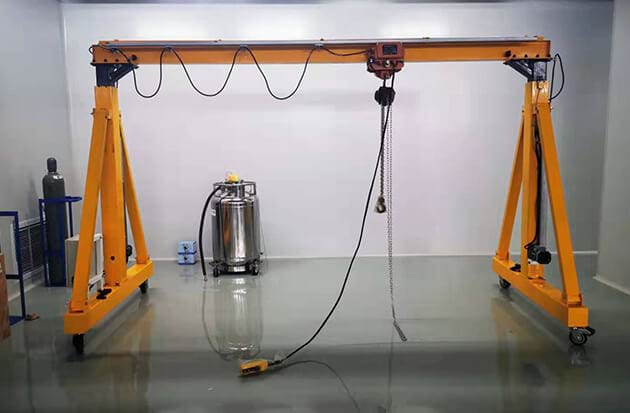

Portable Factory Gantry Crane
- Widely used in factory, warehouse, etc.
- Lifting Capacity: 0.25~10t
- Span: 1-12m
- Lifting Height: according your needs
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃

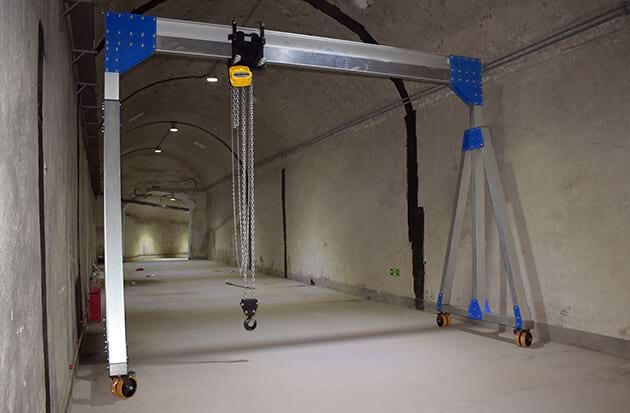

Aluminum alloy portable factory gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 0.25~5t
- Span: 1-8m
- Lifting Height: ≤8m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃

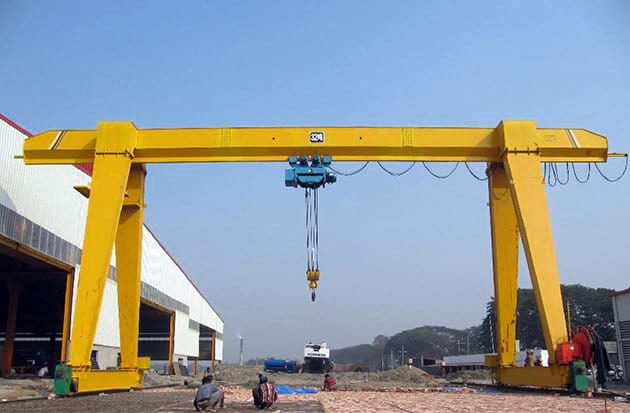

MH single girder factory gantry crane
- Widely used in workshop, storage, port, hydroelectric power station.
- Lifting Capacity: 1~20t
- Span: 8-30m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃

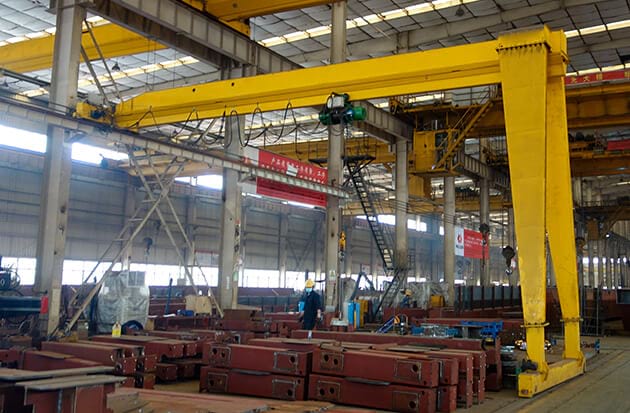

BMH single girder factory semi-gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~20t
- Span: 7.5-28.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃

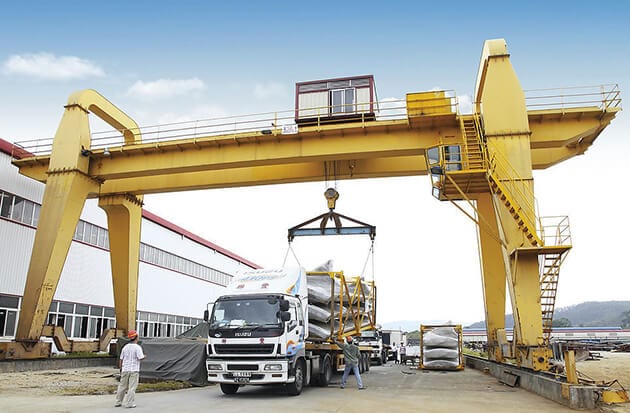

MG double girder factory gantry crane
- Widely used in workshop, storage, port, hydroelectric power station.
- Lifting Capacity: 5-500t
- Span: 7.5-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃

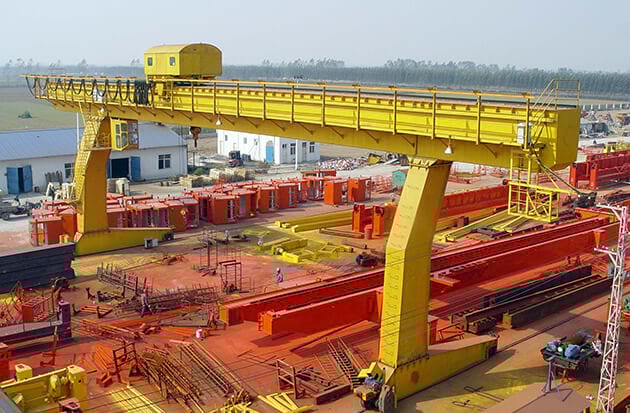

L type electric factory gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 5-32t
- Span: 18-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃

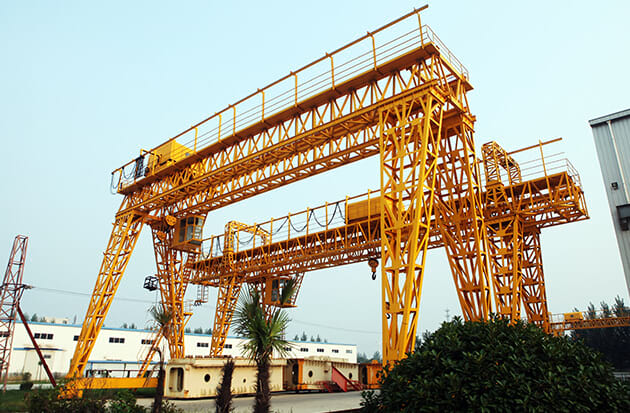

MG truss type double girder factory gantry crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 5-500t
- Span: 12-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
Factory Crane Types: Factory Jib Crane
For factory jib crane, the most popular type is freestanding mounted jib crane, it’s the most widely used jib crane. With the freestanding feature, it can be installed anywhere. If you want to install a factory jib crane on a column, wall mounted factory jib crane is suitable for you. Wall travelling factory jib crane is travelling along the rails mounted on the wall or columns, suitable for production lines.
Freestanding Mounted Factory Jib Crane
- Widely used in factory, warehouse, etc.
- Lifting Capacity: 0.25~10t
- Span: 1-12m
- Lifting Height: according your needs
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Wall Mounted Factory Jib Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 0.25~5t
- Span: 1-6m
- Lifting Height: ≤8m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
Portable Factory Jib Crane
- Widely used in workshop, storage.
- Lifting Capacity: 0.5~2t
- Span: 1-3m
- Lifting Height: 1-3m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃

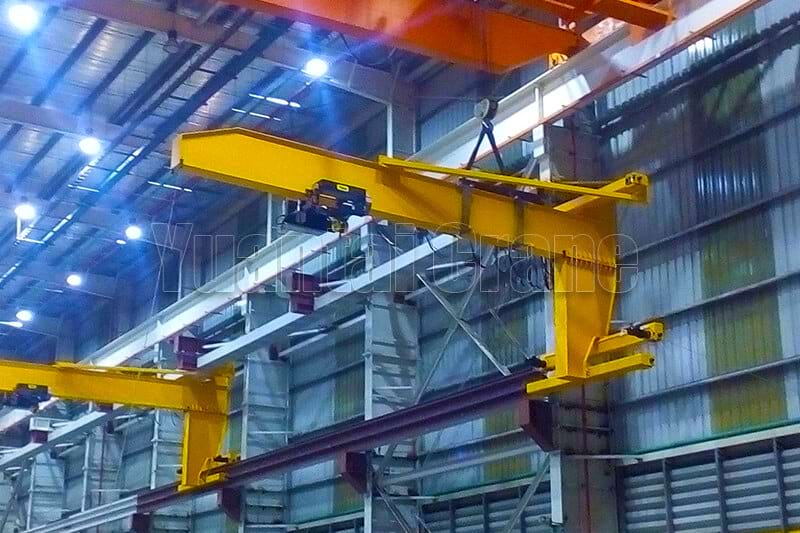

Wall Travelling Factory Jib Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~10t
- Span: 1-6m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Factory Crane Types: Factory Monorail Crane
Factory monorail crane is one of the simplest hoist cranes, which consists of a hoist and a monorail beam.
Ceiling-mounted Facotry Monorail Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~10t
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
Freestanding Facotry Monorail Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~12.5t
- Lifting Height: 6/9/12m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
Retractable Facotry Monorail Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~10t
- Lifting Height: 6/9/12m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
How to Get Factory Crane Price and Solution?
When you want to know the factory crane price, you already have a plan and an idea for the factory crane. Just tell us what factory crane you want, your purpose, and the basic crane parameters, we will design suitable factory solution for you which is from your working conditions and meet your factory. Please contact us freely with your answers as below.
- Lifting capacity:
- Span(S):
- Lifting height(H):
- Power supply (e.g., 380V 50Hz 3Phase):
- Crane traveling length(L):
- Detailed working conditions of the crane:
- How many hours does the crane need to work each day:
- Shall we provide you the crane traveling rails?
- Other requirements:
Parameters
Factory Overhead Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~500t
- Span: 7.5-28.5m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Factory Gantry Crane
- Widely used in workshop, storage, port, hydroelectric power station.
- Lifting Capacity: 5-500t
- Span: 7.5-35m
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A5, A6
- Ambient Temperature: -25~40℃
Factory Jib Crane
- Widely used in factory, warehouse, etc.
- Lifting Capacity: 0.25~10t
- Span: 1-12m
- Lifting Height: according your needs
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3, A4
- Ambient Temperature: -25~40℃
Facotry Monorail Crane
- Widely used in factory, warehouse, stockyard, etc.
- Lifting Capacity: 1~10t
- Lifting Height: 6/9/12/18m (according your needs)
- Voltage: 220-660V 50/60Hz 3Phase
- Working Class: A3
- Ambient Temperature: -25~40℃
