Subject    Crane

Are you able to quote me on a 20’x60 2 ton overhead free standing crane and delivery time to Grande Prairie Alberta Canada

Regards

Shaun

At the middle night of June 14, 2022, we received the 2 ton overhead free standing crane inquiry email from Shaun. He needed new overhead crane system for his workshop. We usually understand the customer's working conditions, and then advise them which crane is more suitable.

What is Shaun's business?

His company is the Peace Region’s center for all things Drivetrain related who have a whole bay dedicated for driveshaft manufacturing and repair. Another bay is dedicated for their rebuild facility where their trained technicians rebuild transmissions, differentials and other gear boxes. They also have a bay for light duty and two drive thru bays for heavy duty repair.

“When it comes to driveline, we’ve got you covered. Right from the clutch to the wheel ends we carry driveline components for both heavy duty and light duty application. We are comprised of both retail parts and a full-service shop/machine shop. We take pride in the driveshafts we build using Genuine parts to ensure that the shaft is built above and beyond OEM product standards. Using genuine parts ensures that our customers are going to have a driveline that lasts and is capable of handling the rough terrain of Northern Canada.”

What Crane is Suitable for Shaun?

Shaun chose 2 ton freestanding workstation bridge crane for his maintenance line. As you know, the freestanding workstation bridge crane are widely used in Parts Assembly, Machining, Palletizing loads, Injection Molding, Warehouse loading docks, Process Equipment Maintenance, Truck Service Centers. This type overhead crane is a flexible production facility, you can easily install a bridge crane on a 6-inch concrete floor and create the ability for the worker to perform the desired task. Because there is no overhead mounting required, there will be no unnecessary stress on the facility's structure. So, freestanding bridge crane is suitable for Shaun’s working condition.

2 ton Freestanding Bridge Crane Design and Quotation

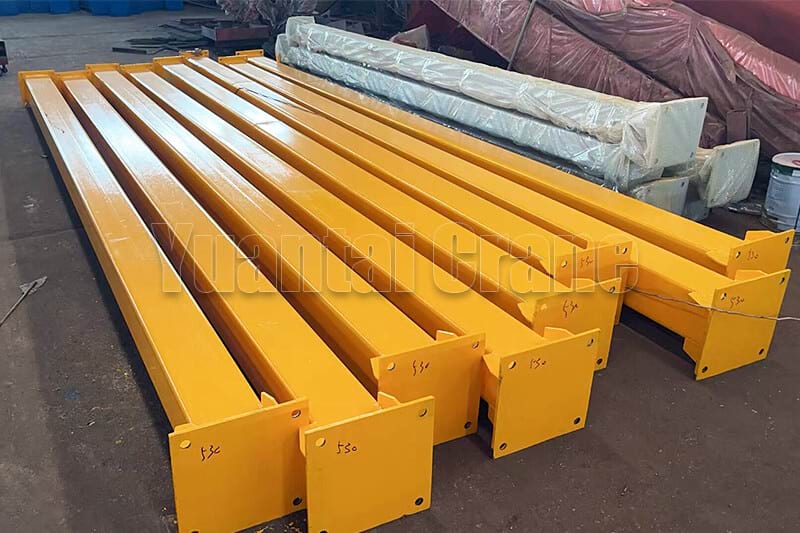

We chatted more with Shaun about the detailed overhead crane requirement and designed 3 sets 2 ton freestanding bridge crane solution for him after all requirement is clear. 2 ton is a large capacity for freestanding bridge crane, and the crane span is longer than normal, so we adopt double girder type crane in the solution. For small span, single girder type is enough. As there are no support columns in his workshop, so we also supplied the columns in our solution.

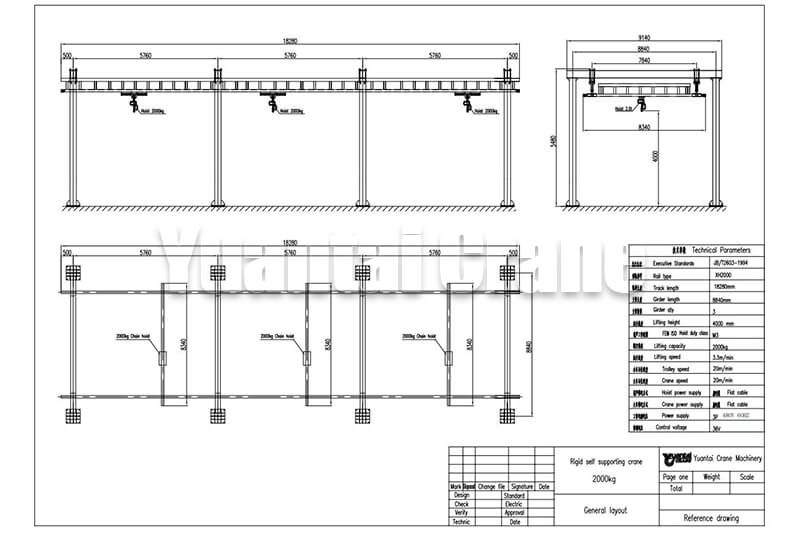

The drawing of 3 sets 2 ton freestanding workstation bridge crane travel on the same rails
The drawing of 3 sets 2 ton freestanding workstation bridge crane travel on the same rails

Part of 2 ton freestanding workstation bridge crane quotation
Part of 2 ton freestanding workstation bridge crane quotation

Shaun asked one question after checking the quotation, “can I get the power requirement changed from 480 to 240 volts?” Yes, the power supply can be changed as the customer’s needs. The power supply of free standing workstation bridge crane system is from 220V to 660V, you can choose the voltage you have. We calculated the price and sent proforma invoice to him. Shaun placed the 2 ton workstation crane order.

Why Shaun Choose us?

Yuantai Freestanding Bridge Crane Features:

  • Enclosed track / easy movement and long life
  • Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
  • Ease of Installation / install on any standard 6" concrete floor
  • Smooth rolling surface / Easier movement of bridge and trolleys
  • Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

We also checked the prices of some competitors from Canada, the crane prices are very high. The price of the 2 ton workstation overhead crane is almost double our price. It is also very attractive to customers to achieve the same function with less cost.

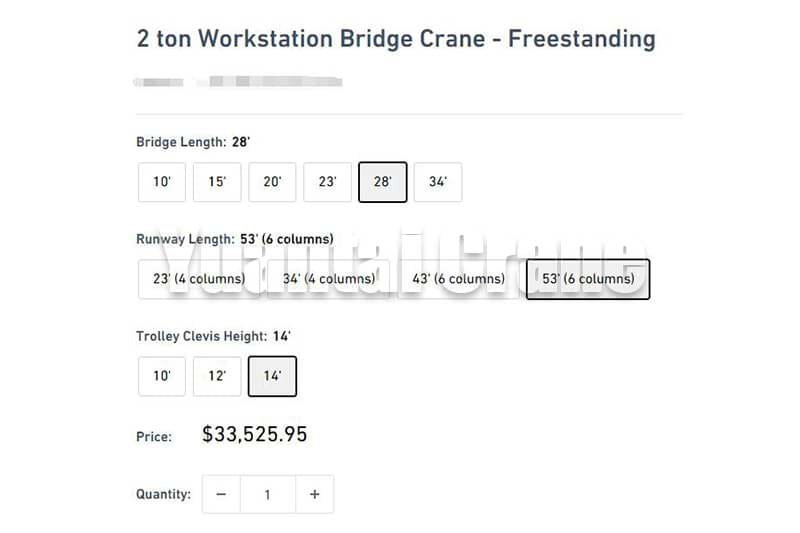

2 ton Freestanding Workstation Bridge Crane Price from competitor

I Need Freestanding Bridge Crane, How to Send an Inquiry?

Freestanding Bridge Crane Inquiry Parameters

  • Lifting capacity:
  • Length of W, S, H, and L (check the photo above)
  • Power supply (e.g. 380V 50Hz 3Phase):
  • Crane travel type: A. Electrical type   B. Manual type
  • Control Mode: A. Remote control   B. Pendant Control

Send us inquiry with information above to [email protected], we will quote you according your request.
