South Africa Single Girder and Double Girder Top Running Crane

Specifications

What Is A Top Running Crane?

In general, top running crane refers to top running overhead crane. Top running cranes run on a fixed rail or track system on the top of each runway beam. As the whole crane systems run on the rails, so they are called top running crane. They can be configured in a single girder or double girder bridge design and are ideal for moving extremely heavy loads.

According the bridge design, a single girder top running crane utilizes an underhung trolley and hoist as lifting mechanism, while a double girder top running crane most often utilizes a top running trolley and hoist (double girder crab hoist or open winch) as lifting mechanism.

Single Girder Top Running Overhead Crane

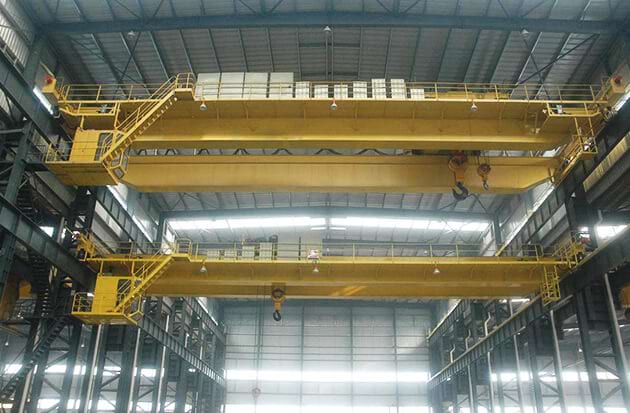

Double Girder Top Running Overhead Crane

What Are The Top Running Crane advantages?

1. Top running overhead cranes have no limiting capacity
2. As the crane systems are supported by the building structure or columns, they can easy handle the capacity from 500kg to 500 tons loads. Normally, a single girder tope running crane can lift up to 20 tons, while the lifting capacity of double girder tope running crane is up to 500 tons.
3. More higher lifting height. Top running cranes provide added lift height for buildings with limited headroom because they ride on rails on top of the runway beam.
4. Top running cranes can accommodate wider spans.
5. Installation and future service or maintenance of top running crane is easier and less time
6. Top running cranes have faster lifting and travelling speed, more efficient.

In view of the above advantages, top running cranes are the most widely used crane types.

What Top Running Crane Yuantai Crane Supply?

Single girder top running overhead cranes specifications

LD type single girder top running crane

• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~32t
• Span: 7.5-28.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

HD type single girder top running crane

• Designed with European FEM/DIN standard.
• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~20t
• Span: ≧6m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

LDP type low headroom top running overhead crane

• Designed for low headroom workshop application
• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~20t
• Span: 7.5-28.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

LZ type single girder grab top running overhead crane

• Lifting Capacity: 1~20t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

LB type single girder explosion-proof top running overhead crane

• Lifting Capacity: 1~20t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Explosion-proof Grade: ExdⅡBT4/CT4
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

Double girder top running overhead cranes specifications

LH type double girder top running overhead crane

• Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
• Lifting Capacity: 1~63t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4, A5
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QDX type double girder top running overhead crane

• Designed with FEM/DIN standards.
• Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
• Lifting Capacity: 1~100t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QD type double beam top running crane

• Designed with European FEM/DIN standard.
• General handling equipment.
• Lifting Capacity: 1~550t
• Span: 10.5-35.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A4, A5, A6, A7
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QE type double trolley top running crane

• Equipped with two trollies.
• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: (2.5+2.5)~(200+200)t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QC type double girder electromagnetic top running overhead crane

• Lifting Capacity: 1~32t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QDY type Ladle overhead crane, double girder top running crane

• Lifting Capacity: 1~500t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A7
• Ambient Temperature: -10~60℃

Get Overhead Crane Price

QZ type double girder top running grab overhead crane

• Lifting Capacity: 1~25t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A6, A7
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QB type double girder top running explosion-proof overhead crane

• Lifting Capacity: 5-75t
• Span: 10.5-35.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Explosion-proof Grade: ExdⅡBT4/CT4
• Working Class: A4, A5
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

Yuantai Top Running Cranes Application

Yuantai top running overhead cranes are widely used in factories, workshops and other places, and play an extremely important role in many production tasks.

For general industries, such as pulp and paper industry, power industry, automotive industry, manufacturing industry, etc., general purpose single girder and double girder top running overhead cranes are available (top running crane type: LD, LDP, HD, QD, LH, QDX, QE, QC).

For special industries, such as waste treatment industry, mining industry, etc. we recommend customer choose overhead crane with grab bucket (top running crane type: LZ, QZ).

For explosive environments, such as Petrochemical industry, Gas industry, etc., explosion-proof top running overhead cranes are more suitable (top running crane type: LB, QB).

Why Choose Yuantai Crane?

• Tailor-made Crane Solutions
  The top running overhead crane solutions of Yuantai Crane are customized according your real working situation. On the premise of meeting the requirements of use, we will save you the cost as much as possible.
• Quality Assurance
  Perfect quality control system, focusing on product quality. Products are the carrier of all services and trust.
  All crane products and components are passed ISO / CE certifications.
• Perfect service makes you worry-free
  Offer crane installation and maintenance service.
  Free crane operation training service for your staff.
  Up to 20 years of accessory support.

Contact Yuantai Crane With Your Request

Due to the different actual working conditions of each customer, the top running overhead crane price will also vary, even if the lifting capacity is the same. The factors that cause the price difference mainly include: lifting capacity, span, lifting height, power supply, actual working environment, and customer's special requirements. The difference in any one factor will cause the price to be different. Therefore, if you want to get the price of the overhead bridge crane that meets your working conditions, please send us a detailed request:

• Lifting capacity:
• Span(S):
• Lifting height(H):
• Power supply (e.g., 380V 50Hz 3Phase):
• Crane traveling length(L):
• Detailed working conditions of the crane:
• How many hours does the crane need to work each day:
• Shall we provide you the crane traveling rails?
• Other requirements:
