South Africa Free Standing Workstation Bridge Crane

Specifications

Imagine that a worker needs to move back and forth while manipulating heavy loads or machine parts. If you have a flexible production facility, you can easily install a bridge crane on a 6-inch concrete floor and create the ability for the worker to perform the desired task. Because there is no overhead mounting required, there will be no unnecessary stress on the facility's structure. Here are some key features of our Free Standing Work Station Cranes:

• Enclosed track.
  You can erect the work station bridge crane anywhere on the facility floor. It provides for easy movement of the heavy load along the moving surface.
• Ease of movement.
  This kind of assembly allows for the easier movement of bridge and trolleys, and there is no debris buildup along the track. Consistent, easy movement ensures the longevity of trolley wheels. Which means less maintenance, less possible repairs, and less downtime.
• Superior load positioning.
  When the bridge moves along the enclosed track, there is no unexpected shifting, such as swaying, shimmying, or crabwalking. The load is transported efficiently from point to point because every part of the frame is assembled to ensure superior load distribution.
• Flexible precision.
  With a sturdy design, workers can count on the precise location of the load as they perform their tasks. As your product requirements change, the work station can be moved to accommodate your workers’ needs on the assembly line.

Standard Supply Scope

• Lifting Capacity: 100~2000 Kg
• Span: 1-9 m
• Lifting Height: according your needs
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: M4
• Ambient Temperature: -25~40℃

Features & Benefits

• Enclosed track / easy movement and long life
• Rigid runways / superior load positioning – no movement or “crabwalking” of the bridge
• Ease of Installation / install on any standard 6" concrete floor
• Smooth rolling surface / Easier movement of bridge and trolleys
• Multiple track profiles and spanning capabilities/Adaptable, flexible, and cost competitive

Applications

• Applications with lighter loads (less than 2000 Kg.)
• Parts Assembly
• Machining
• Palletizing loads
• Injection Molding
• Warehouse loading docks
• Process Equipment Maintenance
• Truck Service Centers

How to inquire workstation bridge crane

• Lifting capacity:

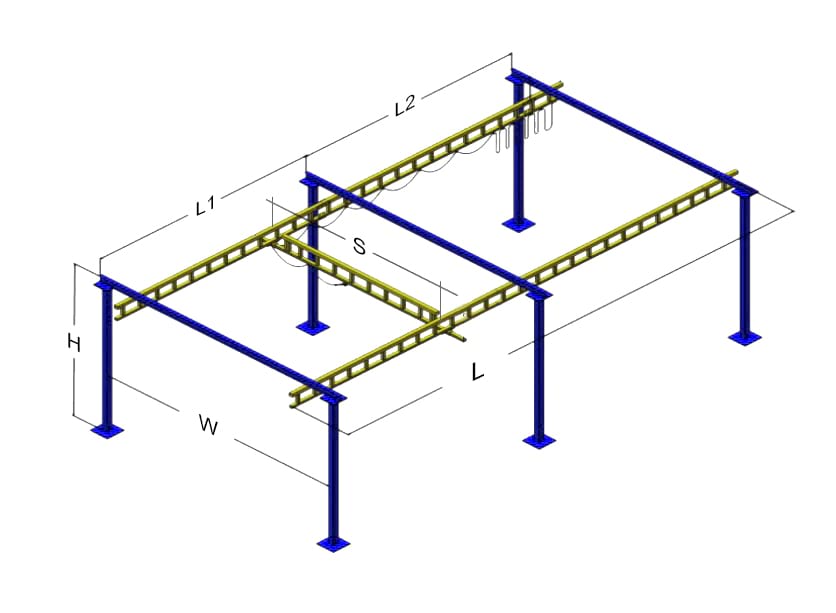

• Length of W, S, H, and L (check the photo above)
• Power supply(e.g. 380V 50Hz 3Phase):
• Crane travel type: A. Electrical type   B. Manual type
• Control Mode: A. Remote control   B. Pendant Control

Leave us these information, we will quote you according your request.
