4 Post Overhead Crane

You will learn more 4 post overhead crane details in this article, such as 4 post overhead crane introdution, tyeps, specifications, applications and price.

Price: $5000-$60000 / set Get Latest Price
Download Video Show

Specifications

What is A 4 Post Overhead Crane

A 4 post overhead crane is a type of crane that is supported by four vertical posts or columns, with a horizontal bridge or beam spanning across them. You also can call it freestanding overhead crane. This design provides stability and allows for heavy loads to be lifted and moved safely and efficiently. 4 post overhead cranes are commonly used in industrial settings such as factories, warehouses, and construction sites.

4 post overhead crane (freestanding overhead crane)4 post overhead crane (freestanding overhead crane)

A 4 post overhead crane typically consists of four vertical posts or columns, which are anchored to the ground or a supporting structure. A horizontal bridge or beam spans across the columns, and is supported by end trucks or trolleys that run along rails attached to the top of the columns. The end trucks or trolleys are equipped with a hoist, which is used to lift and move heavy loads. The hoist is typically powered by an electric motor, and can be operated by a pendant control or a remote control. The entire system is designed to be robust and durable, with safety features such as limit switches and overload protection to ensure safe operation.

4 Post Overhead Crane Types and Specifications

Different crane suppliers maybe supply different types of 4 post overhead cranes. There are mainly 3 types 4 post overhead cranes Yuantai Crane supply, their specifications are as follow.

Top running 4 post overhead crane

Top running 4 post overhead crane

  • Lifting Capacity: 1~20t
  • Span: 7.5-28.5m
  • Lifting Height: 6/9/12/18m (according to your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Price
Under running 4 post overhead crane

Under running 4 post overhead crane

  • Lifting Capacity: 1~16t
  • Span: ≤20m
  • Lifting Height: 6/9/12/18m (according to your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Price
4 post freestanding workstation overhead crane

4 post freestanding workstation overhead crane

  • Lifting Capacity: 100-2000kg
  • Span: 1-9 m
  • Lifting Height: 6/9/12m (according to your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Price

Benefits of A 4 Post Overhead Crane

As one of the freestanding overhead cranes, 4 post overhead crane has its benefits for many industries. The benefits of a 4 post overhead crane include:

  • Versatility: 4 post overhead cranes can be used to lift and move a wide range of heavy loads, making them a versatile solution for many industrial applications.
  • Efficiency: With their ability to lift and move heavy loads quickly and safely, 4 post overhead cranes can help improve productivity and efficiency in industrial settings.
  • Safety: 4 post overhead cranes are designed with safety features such as limit switches and overload protection, which help prevent accidents and ensure safe operation.
  • Durability: These cranes are built to be robust and durable, with the ability to withstand heavy use in demanding industrial environments.
  • Space-saving: 4 post overhead cranes are typically installed overhead, which helps free up valuable floor space in industrial settings.

4 Post Overhead Crane Application

As one type of the universal overhead cranes, 4 post overhead cranes are commonly used in a variety of industrial applications, both indoor and outdoor applications, including:

  • Manufacturing: These cranes are used to lift and move heavy materials and equipment in manufacturing facilities, such as in the automotive, construction, and aerospace industries.
  • Warehousing: 4 post overhead cranes are used to move and store heavy goods in warehouses and distribution centers.
  • Mining: These cranes are used to lift and move heavy equipment and materials in mining operations.
  • Construction: These cranes are used to lift and move heavy materials on construction sites, such as steel beams, concrete blocks, and construction equipment.

4 post overhead cranes also can be extended to multi-post overhead cranes according to your requirements, such as 6 post overhead crane, 8 post overhead cranes.

6 post overhead crane6 post overhead crane

4 Post Overhead Crane Price

The price of a 4 post overhead crane can vary widely depending on several factors, including the size and capacity of the crane, the type of hoist and controls, and any additional features or customization. Generally, a basic 4 post single girder overhead crane with a capacity of 5-10 tons can cost anywhere from $6,000 to $50,000 or more. However, larger and more complex cranes can cost several hundred thousand dollars or even more than a million dollars. It's important to work with the reputable supplier – Yuantai Crane who can provide a detailed quote based on your specific needs and requirements.

4 Post Overhead Crane Supplier – Yuantai Crane

Yuantai Crane

Yuantai Crane is a well-known supplier of overhead cranes, including 4 post overhead cranes. They offer a wide range of cranes with different capacities, spans, and features to meet the needs of various industries. Yuantai Crane prides itself on providing high-quality, reliable cranes that are built to last. They also offer customization options to ensure that their cranes meet the specific needs and requirements of each customer. If you are interested in purchasing a 4 post overhead crane, Yuantai Crane is definitely a supplier worth considering. Contact Yuantai Crane now! However, it's always a good idea to compare multiple suppliers and get quotes from each to ensure that you are getting the best value for your money.

Parameters

Top running 4 post overhead crane

  • Lifting Capacity: 1~20t
  • Span: 7.5-28.5m
  • Lifting Height: 6/9/12/18m (according to your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃

Under running 4 post overhead crane

  • Lifting Capacity: 1~16t
  • Span: ≤20m
  • Lifting Height: 6/9/12/18m (according to your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃

4 post freestanding workstation overhead crane

  • Lifting Capacity: 100~2000 Kg
  • Span: 1-9 m
  • Lifting Height: according to your needs
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A4
  • Ambient Temperature: -25~40℃

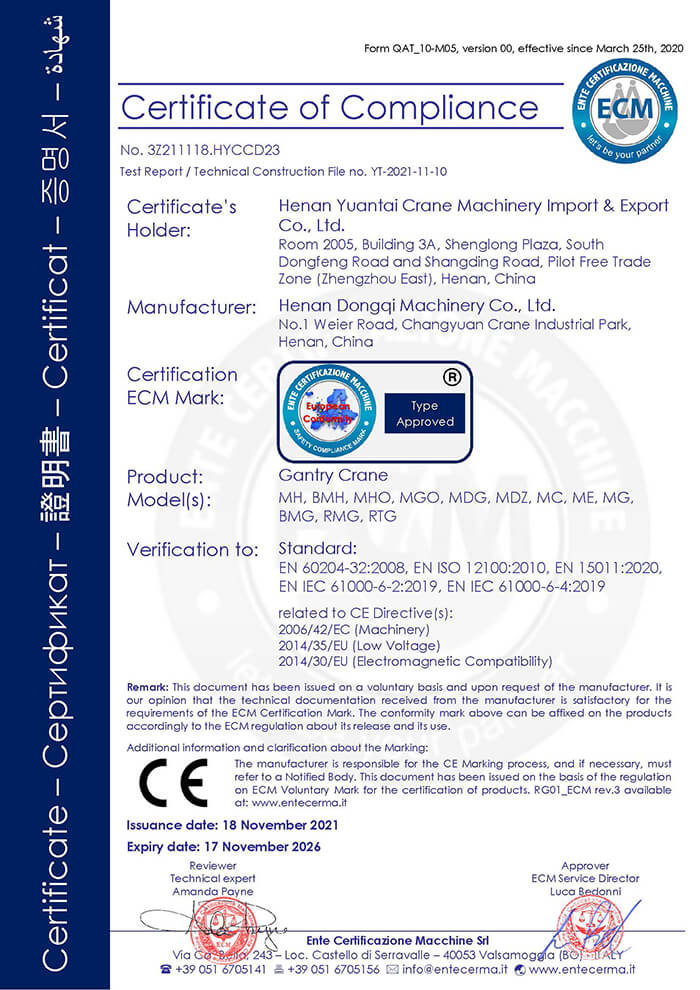

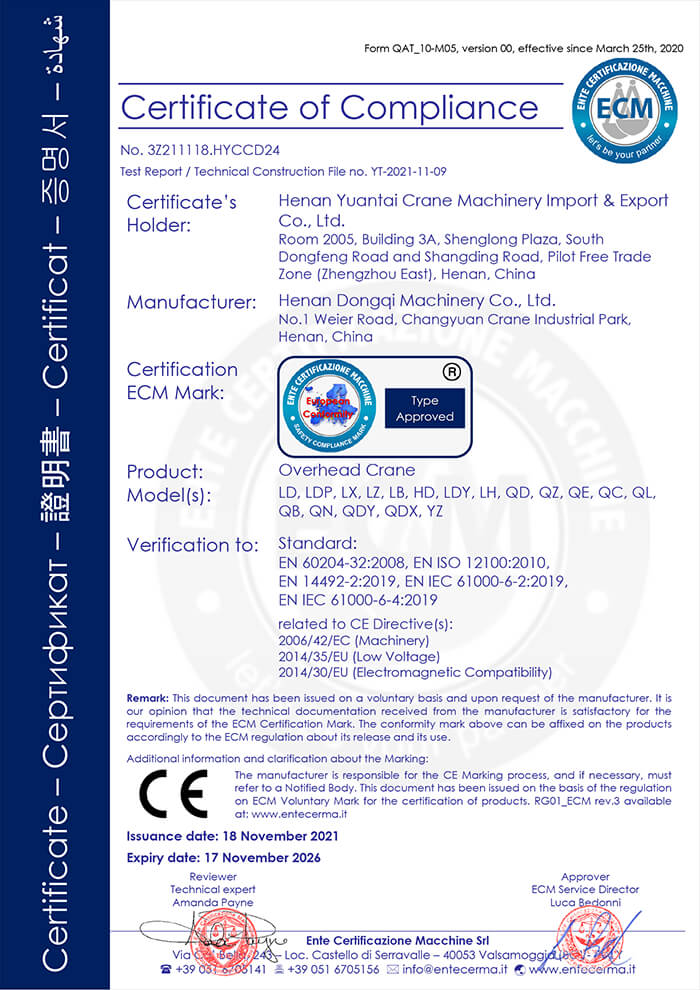

Certificates
