Gulf Industries Company (GIC) provides a complete solution for industrial valve repair, testing and automation services in Saudi Arabia.
The primary business objective of the organization is to deliver services in the field of refurbishment of valves at a very reasonable cost and to confirm to quality and on-time delivery requirement of the customers. GIC services are geared primarily to serve the Oil and Gas, Petrochemical, and Power sectors.

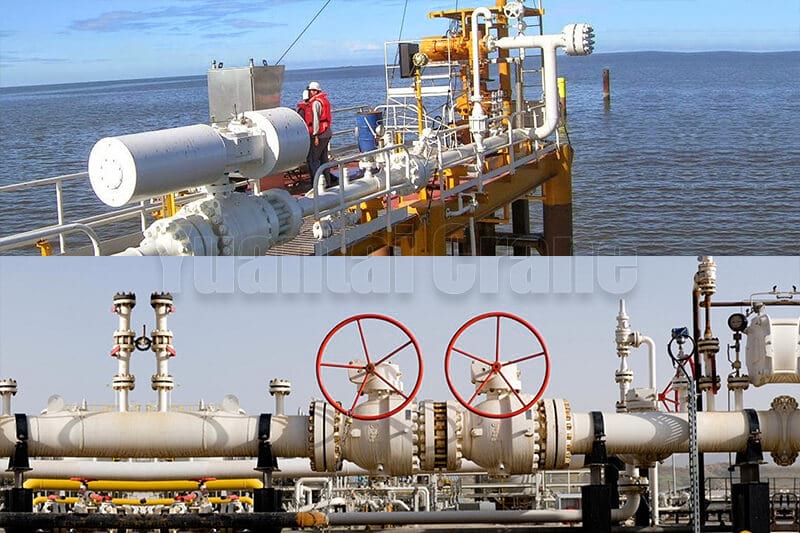

Industrial valve products of Gulf Industries Company
Being the company with well-equipped set up and outstanding team of expert work force, the unit provides both onsite and offsite servicing activities whether the requirement is for one valve or for a complete plant. It has a wealth of multi-skilled engineers and technicians who provide complete valve management services for valves of any Size / Type / Make / Rating / MOC / Temp.
GIC purchased 5 ton BMH type semi-gantry crane from Yuantai Crane several years ago and update a new electric wire rope hoist for it. The semi-gantry crane worked well in their workshop and created a lot of value for the company.
In view of the trust in Yuantai Crane's high-quality crane products, GIC sent the new 20 ton double girder overhead crane inquiry directly to Yuantai Crane. After detailed communication, it is finally confirmed that the parameters of the double-girder bridge crane are as follows:
- Lifting capacity: 20/5 tons
- Lifting height: 10/10.5 meters
- Span: 20 meters
- Power supply: 380V 60Hz 3Phase
- Working duty: A5
- Control mode: remote control
- Crane traveling length: 150 meters
- Main hook lifting speed: 0.6/4.0 m/min
- Auxiliary hook lifting speed: 0.8/5.0 m/min

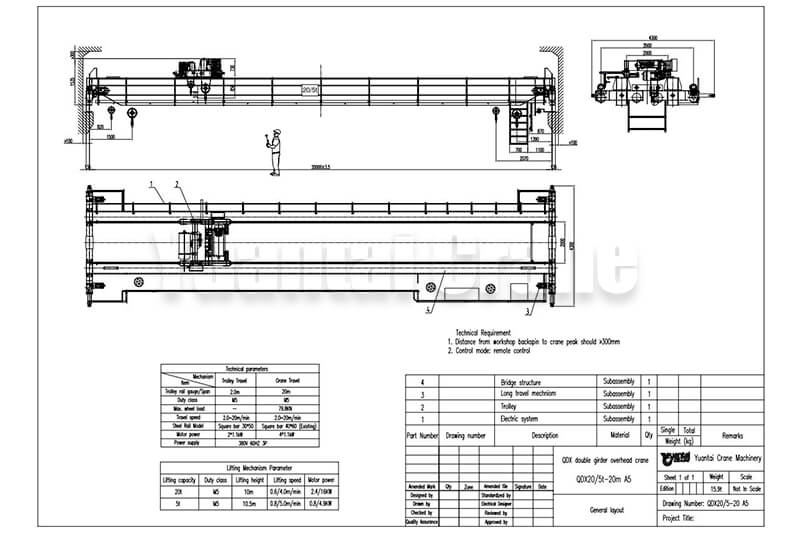

20 ton double girder overhead crane drawing
The 20/5 ton double girder crane has been produced and delivered. GIC does not require us to provide installation services, they can install themselves. Yuantai Crane will still be ready to provide free installation guidance at any time, looking forward to the good news of their smooth operation after installation.
