Qatar Double Girder Bridge Crane and EOT Crane for Sale

Specifications

Crane Names Explained in This Article

Bridge Crane is another name of overhead crane.
EOT Crane is the abbreviation of electric overhead travelling crane.
Double Girder means two main girders / beams, equal with double beam.
Overhead Travelling Crane equal with overhead crane.

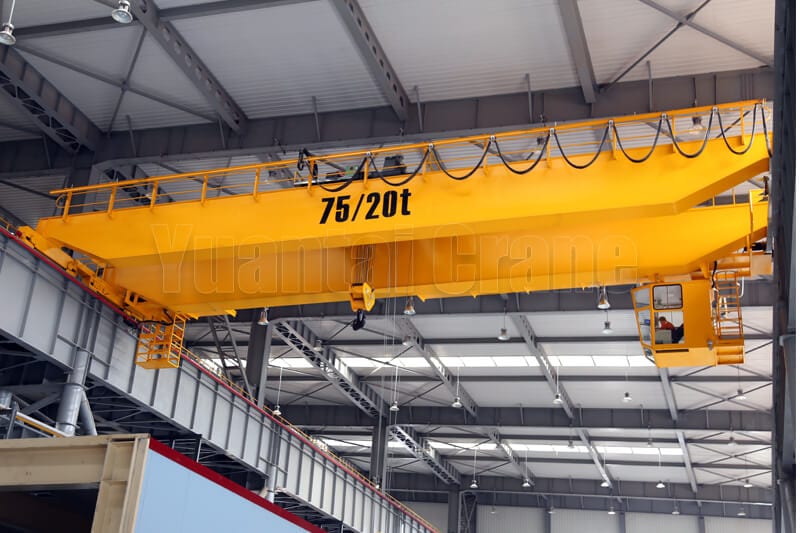

Double Girder Bridge Crane Overview

What is double girder bridge crane? As you know, bridge crane also named overhead crane, just different names in different countries. In crane industry, we usually name cranes after its structure, such as, single girder overhead crane and double girder bridge crane, single beam gantry crane and double beam gantry crane. So, that’s easy to understand the name, double girder bridge crane is double girder overhead crane which has two main girders / beams.

Composition of double girder bridge crane

Double Girder Bridge Crane consists of two main beams, two end carriages, lifting mechanism (electric hoist, electric crab hoist, electric open winch), motors, reducers, electrical box, power feeding system, hook (also can be grab, spreader, lifting tongs, electromagnet etc.) and lots of safety devices (buffers, limiters).

Two main beams mean more strong than single beam crane, so, double girder eot crane is one of the most popular overhead crane types in all industries. Faster speed, higher crane working class make them can create more value for your job.

Why is There a Double Girder EOT Crane?

Before double girder eot crane was created, single beam eot crane was the main role in the lifting tasks. However, with the development of the times, the things that need to be lifted are getting heavier and heavier. For lifting heavy materials that over 20 tons, single girder eot crane is very dangerous, as its beam cannot bear so heavy capacities. “How about two beams? Maybe double beam eot crane can lift over 40 tons.” Crane engineers had the idea.

Another factor that prompted the birth of the double girder bridge crane was efficiency. With the rapid development of society, people's demand for products has increased significantly, forcing the industry to continuously innovate production tools. Single girder crane is light lifting tools, only has A3 or A4 working duty. Compare with single girder eot crane, the working duty of double beam eot crane can up to A6, A7 and A8. A higher working duty means that more items can be lifted within the same time period, which greatly improves production efficiency.

Advantages of Double Girder Overhead Crane

• Double main beams design, more strong
• Large lifting capacity
• Higher working duty
• Higher lifting and travelling speed
• Higher lifting height
• Light weight, light wheel load, reliable performance

Features of Double Girder Overhead Crane

• FEM and GB production standards
• Epoxy zinc-rich primer and chlorinated rubber topcoat
• Pendant control, remote control and cabin control available
• Overload limiter, lifting height limiter, cross travelling limiter and crane long travel limiter are included
• Automatic power-off protection
• Frequency conversion is available for lifting, cross travelling and crane travelling
• Customized overhead crane solution available for special industries

Types of Double Girder Overhead Travelling Crane

Normally, double girder overhead cranes are designed as top tunning type, for some special working conditions, they will be designed as underhung type. Top running double beam overhead crane is the overhead crane travelling on the top of crane rails. Underhung double girder bridge crane has the opposite design, the crane is hanged under the crane rails which are fixed on the ceiling, so you also can all them ceiling mounted double girder bridge crane. Yuantai Crane will design suitable double beam overhead crane according customer’s working condition and space.

LH type top running double girder overhead crane

• Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
• Lifting Capacity: 1~63t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4, A5
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QDX type top running double girder overhead crane

• Designed with FEM/DIN standards.
• Widely used in machinery fabrication, metallurgical plant auxiliary workshop, storage, etc.
• Lifting Capacity: 1~100t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QD type top running double beam eot crane

• Designed with European FEM/DIN standard.
• General handling equipment.
• Lifting Capacity: 1~550t
• Span: 10.5-35.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A4, A5, A6, A7
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QE type top running double trolley overhead crane

• Equipped with two trollies.
• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: (2.5+2.5)~(200+200)t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QC type top running double girder electromagnetic overhead crane

• Lifting Capacity: 1~32t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QDY type Ladle overhead crane, top running double girder bridge crane

• Lifting Capacity: 1~500t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A7
• Ambient Temperature: -10~60℃

Get Overhead Crane Price

QZ type top running double girder grab overhead crane

• Lifting Capacity: 1~25t
• Span: 7.5-31.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A6, A7
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

QB type top running double girder explosion-proof overhead crane

• Lifting Capacity: 5-75t
• Span: 10.5-35.5m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Explosion-proof Grade: ExdⅡBT4/CT4
• Working Class: A4, A5
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

Underhung Double Girder Bridge Crane

• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~16t
• Span: ≤20m
• Lifting Height: 6/9/12/18m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Overhead Crane Price

Applications

Double girder overhead cranes are mostly used indoor, but sometimes, they also can be used outdoor. Applications include workshop, maintenance shop, warehouse, shipyards, marinas, steel mills, military, and etc.

Double Girder EOT Crane Manufacturer – Yuantai Crane

As a top double girder eot crane manufacturer from China, Yuantai Crane has designed and customized double girder bridge cranes for more than 5000 companies around the world. Although most of the overhead crane solutions adopt the general-purpose double-girder bridge crane solutions, they have been adjusted in details to better match the actual working conditions of customers, it can be said that every customer achieved his suitable double girder overhead crane solution.

Start with overhead crane solution design, end after overhead crane installation? No! Although we are a double girder eot crane manufacturer, the relationship between us and our customers will not end with the end of a project. The relationship will not end, and our services are always online.

• Tailor-made Double Girder EOT Crane Solutions
  Yuantai Crane is able to supply customized crane solution according your real working situation. On the premise of meeting the requirements of use, we will save you the cost as much as possible.
• Quality Assurance
  Perfect quality control system, focusing on product quality. Products are the carrier of all services and trust.
  All crane products and components are passed ISO / CE certifications.
• Perfect service makes you worry-free
  Offer crane installation and maintenance service.
  Free crane operation training service for your staff.
• Up to 20 years of accessory support.

How to Get Double Girder Bridge Crane Price and Solution?

We are excited for the opportunity to work with you and find the right solution for your problem, no matter how complex or unique. Our engineering team will create a custom double girder bridge crane for you that has everything you need for effective material handling within your facility. Shop for double girder eot cranes and let us know if you need a custom option, we will work with you to customize a factory overhead crane that meets your needs.

• Lifting capacity: ____ ton
• Lifting height: ____ m
• Span: ____ m
• Power supply (e.g., 380V 50Hz 3Phase):
• Crane travelling length: ____ m
• Shall we provide crane rails and power feeding system?
• Used indoor? Or outdoor?
• Detailed working conditions of the crane:
• Other requirements:
