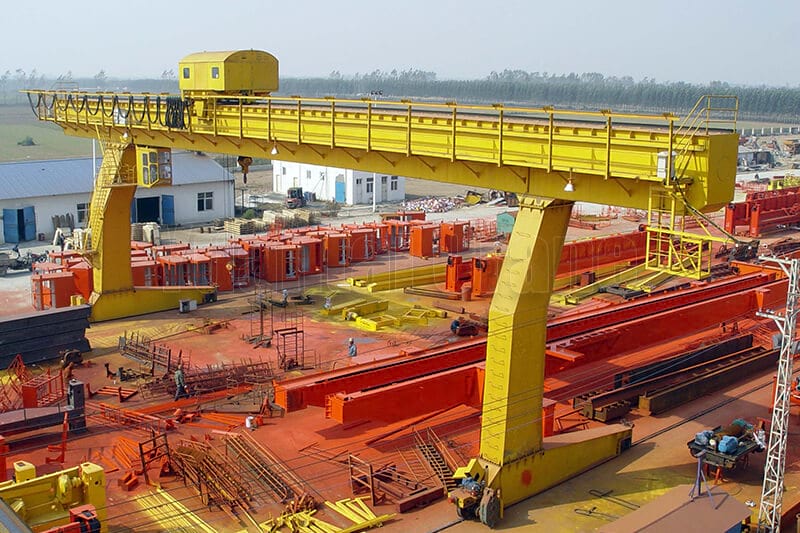

Qatar Single Girder Gantry Crane for Sale

Specifications

Single Girder Gantry Crane Introduction

Single girder gantry crane is a type of gantry crane with a single girder/beam structure on the top and travels on the crane rails. Usually, it equips with electric wire rope hoist as lifting mechanism, sometimes equips with electric chain hoist, according the working conditions. The electric hoist hangs under the main beam and travels along with it. The main girder of single girder gantry crane is supported by one or two legs which are connected with end beams, so the whole gantry crane system can travel along the crane rails by the end carriages.

As the max lifting capacity of the electric hoist for single girder crane is 20 tons, the lifting capacity of single girder gantry crane is also under 20 tons. But single girder gantry cranes can do most of the work no matter indoor and outdoor, which is why single girder gantry cranes are the most popular gantry cranes.

As you know, for industrial gantry cranes, they are able to move in six directions, left and right, up and down, forward and backward. The electric hoist under the main beam moves in left and right directions, when lifting and lowering, the hook of the hoist move up and down and the whole gantry crane systems move forward and backward.

If the single girder gantry crane travels long distance, it will be equipped with a cable reel. Long travel means long power feeding system, gantry crane cable reel can effectively solve the problem of retracting and releasing the power supply cable.

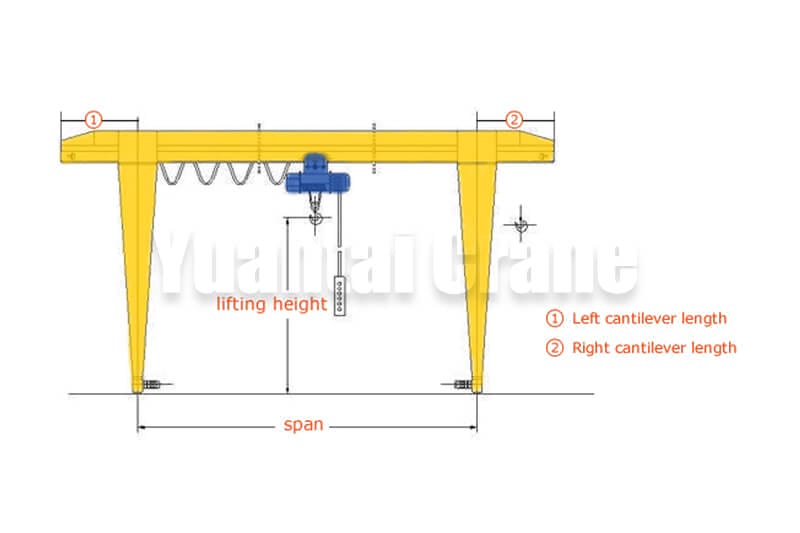

Sometimes you can see the cantilevers on the left and right of the single girder gantry crane main beam, and sometimes just one on the left or right. The cantilevers length is not included in crane span, if you need to lift loads which are out of the crane rails, a cantilever is a good choice, the electric hoist can travel across the legs. Of course, the cantilever is not infinitely long, it depends on the span of the whole gantry crane.

Main Composition of Single Girder Gantry Crane

Main Girder

Q235/Q345 carbon structural steel. Strong box type with standard deflection

Support Legs

Q235/Q345 carbon structural steel. Strong box type with three coats of paint

Gantry Crane End Carriages

Q235/Q345 carbon structural steel. Nanjing brand travelling motor

Electric Hoist

High quality single speed and double speed electric hoist

Gantry Crane Travelling Motor

Nanjing special crane motor

Crane Wheels

Vacuum casting, intermediate hardening by top technical machinery

Benefits of Single Girder Gantry Crane

High site utilization rate, large operating range
Wide adaptability and strong versatility
High reliability components
Excellent operating performance
Suitable for general work
Suitable for outdoor and indoor

Application of Single Girder Gantry Crane

As mentioned above, the single girder gantry crane can do most of the work no matter indoor and outdoor with a lifting capacity up to 20 tons. For indoor use, it can be used in workshops, warehouses, factories and various production lines for materials handling, and for outdoor use, it can be the main lifting equipment with special lifting tools for goods loading and unloading, stone transferer, material handling, steel yards, mines, concrete industries, ports and shipbuilding, etc.

Types of Single Girder Gantry Crane Yuantai Supply

Box girder type single girder gantry crane

Widely used in factory, warehouse, stockyard, etc.
Lifting Capacity: 1~20t
Span: 6~30m
Lifting Height: 6/9/12/18m (according your needs)
Voltage: 220-660V 50/60Hz 3Phase
Working Class: A3, A4
Ambient Temperature: -25~40℃

Get Gantry Crane Price

Truss girder type single girder gantry crane

Widely used in stockyard, steel yard, port, etc.
Lifting Capacity: 1~20t
Span: 6~30m
Lifting Height: 6/9/12/18m (according your needs)
Voltage: 220-660V 50/60Hz 3Phase
Working Class: A3, A4
Ambient Temperature: -25~40℃

Get Gantry Crane Price

L type single girder gantry crane

Widely used in outdoor, stockyard, etc.
Lifting Capacity: 5-32t
Span: 10~35m
Lifting Height: 6/9/12/18m (according your needs)
Voltage: 220-660V 50/60Hz 3Phase
Working Class: A5, A6
Ambient Temperature: -25~40℃

Get Gantry Crane Price

Single girder semi gantry crane

Widely used in factory, warehouse, stockyard, etc.
Lifting Capacity: 1~20t
Span: 7.5~28.5m
Lifting Height: 6/9/12m (according your needs)
Voltage: 220-660V 50/60Hz 3Phase
Working Class: A3, A4
Ambient Temperature: -25~40℃

Get Gantry Crane Price

Single Girder Gantry Crane Cantilevers

Single girder gantry crane with left and right cantilevers

Single girder gantry crane with one (left or right) cantilever

Single girder gantry crane with no cantilevers

Hoist Option for Single Girder Gantry Crane

CD1 Single Speed Electric Wire Rope Hoist

MD1 Double Speed Electric Wire Rope Hoist

ND / NR European-spec Electric Wire Rope Hoist

HHBB / WBH Electric Chain Hoist

YTOC European-spec Electric Chain Hoist

Comparison of Different Types Single Girder Gantry Crane

Box girder type single girder gantry crane	Truss type single girder gantry crane	L-type single girder gantry crane

Suitable for indoor and outdoor Strong box type The gantry cranes can be designed with double cantilevers, single cantilever or no cantilever The gantry crane is equipped with a wire rope hoist, which travels under the main girder	The main beam and outriggers of this type gantry crane are all truss type, which is more suitable for open areas and can withstand strong wind pressure. This type gantry cranes can be designed as full truss or as main girder with truss, supported by box girder or vice versa. Same with the box girder gantry crane, this type gantry crane is also equipped with a wire rope hoist, which travels under the main girder	This type gantry crane outriggers are "L" shaped, which is convenient for large-sized cargoes to be moved from the intermediate position to the cantilever without any size restrictions. The gantry crane can be equipped with two lifting mechanisms, one is an electric wire rope hoist, which runs under the main beam, and the other is a trolley, which runs on the main beam.

Safety Protection Devices of Yuantai Single Girder Gantry Crane

Overload limiter
High-quality, long-term use, impact-resistant polyurethane buffer
Crane travel limit switch
Loss of voltage protection, phase error protection
Emergency stop system, braking system
Lifting height limiter

FAQ About Single Girder Gantry Crane

Why should we choose a gantry crane?

If your workshop has no column, or you just rent a workshop, we recommend you to choose the gantry crane, which can save the cost of the column and is more convenient to install and disassemble.
When the crane is used outdoors, usually, a gantry crane is more suitable.

Which type of gantry crane is suitable for us?

If the gantry crane is used in an open area and the wind is very strong, you'd better choose a lattice gantry crane (truss type gantry crane).
If the cargo size is large and you need the gantry crane has a cantilever, you'd better choose an L-type gantry crane.

I want to use a gantry crane, but the foundation has already been established. Can I avoid breaking the ground to install the gantry crane?

Yes, once the concrete width of the ground exceeds 20 cm, then there is no need to excavate the ground. Just lay the belt steel plate, bolt it to the concrete floor, and then weld the rails on it.

Can you provide gantry crane spare parts?

Yes, as a gantry crane manufacturer, we supply all spare parts such as motors, hoists, rollers, wheels, grabs, hooks, tracks, walking beams, enclosed busbars, etc.

Why Choose Yuantai Crane

Tailor-made Crane Solutions
The single girder gantry crane solutions of Yuantai Crane are customized according your real working situation. On the premise of meeting the requirements of use, we will save you the cost as much as possible.
Quality Assurance
Perfect quality control system, focusing on product quality. Products are the carrier of all services and trust.
All crane products and components are passed ISO / CE certifications.
Perfect service makes you worry-free
Offer crane installation and maintenance service.
Free crane operation training service for your staff.
Up to 20 years of accessory support.
