When it comes to designing and manufacturing semi-portal cranes, our decades of experience in the lifting industry make us the ideal company to help you find a system tailored to your needs. Semi-portal cranes, which utilize one raised and one floor mounted rail to support a single beam or multiple beams, are an excellent lifting solution for many applications as they allow you to get more from the available space in your working environment.

Semi Portal Crane Introduction

Semi-portal cranes, also known as semi-goliath or semi-gantry cranes, are a variation on the goliath crane concept and run on one floor rail and one high level rail mounted on columns or a building structure. Semi-goliath cranes are suitable for the applications described above for full goliath cranes but they bring unique advantages in certain applications. In particular they bring specific benefits where they are specified to run beneath overhead cranes in production facilities to give localized hook service to production cells down one side of a bay and the overhead crane provides general hook service of the whole bay. They may also operate under a gantry crane cantilever as shown in the adjacent application picture.

From the photo you can see that semi portal crane is a kind of crane between bridge crane and gantry crane. The semi portal crane has only one outrigger, and the other end of the crane is supported on the load-bearing beam of the workshop like an overhead crane. Its lifting mechanism, trolley running mechanism and bridge structure are basically the same as those of the bridge crane, and the rated lifting capacity is no more than 20 tons for semi portal crane.

Composition of Semi Portal Crane

Main Girder

Q235/Q345 carbon structural steel. Strong box type with standard deflection

Support Legs

Q235/Q345 carbon structural steel. Strong box type with three coats of paint

Gantry Crane End Carriages

Q235/Q345 carbon structural steel. Nanjing brand travelling motor

Electric Hoist

High quality single speed and double speed electric hoist

Gantry Crane Eletrical Box

Electrical appliances use world-renowned brands, Schneider, ABB, Chint, etc.

Crane Wheels

Vacuum casting, intermediate hardening by top technical machinery

Benefit of Semi Goliath Crane

• Semi goliath crane can be installed under existing overhead cranes with all necessary safety devices
• Semi goliath crane can save cost compared to full gantry crane
• Suitable for indoor and outdoor use, the semi-gantry crane is one of the practical lifting solutions for many applications.
• Including double-girder semi-gantry cranes and single girder semi-gantry cranes
• Equipped with high-quality accessories

Comparison of Semi Gantry Crane and Full Gantry Crane

Semi Portal Crane	Full Gantry Crane
Semi portal crane has only one outrigger run on the ground track, and the other end of the crane is supported on the load-bearing beam of the workshop, which walks on the support track. If the semi gantry crane is used indoors, a semi-gantry crane is more suitable with save space and cost, as it only needs a side column and a runway beam.	The full-type gantry crane has two side support legs, all of which walk on the ground track. Full gantry cranes are easier to install and dismantle if the crane is used indoors without any columns and runway beams.

Application of Semi Goliath Crane

Semi-gantry cranes are mainly used in steel, forest products, intermodal, biomass/pellet, concrete and many other industries, both indoor and outdoor are suitable. If used outdoor, sometimes, semi gantry cranes will be equipped with truss type outriggers.

Semi Portal Cranes Yuantai Crane Supply

Single girder semi gantry crane

• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~20t
• Span: 7.5~20m
• Lifting Height: 6/9/12m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Gantry Crane Price

Double girder semi gantry crane

• Widely used in factory, warehouse, stockyard, etc.
• Lifting Capacity: 1~20t
• Span: 7.5~20m
• Lifting Height: 6/9/12m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A5, A6
• Ambient Temperature: -25~40℃

Get Gantry Crane Price

Rail-less Semi Portal Crane

• Widely used in factory, warehouse, etc.
• Lifting Capacity: 1~20t
• Span: 7.5~20m
• Lifting Height: 6/9/12m (according your needs)
• Voltage: 220-660V 50/60Hz 3Phase
• Working Class: A3, A4
• Ambient Temperature: -25~40℃

Get Gantry Crane Price

Rail-less Semi-Portal crane is equipped with polyurethane tire wheels and guide rollers to allow the lower carriage to run directly on the factory floor without rails. Most factory floors are suitable for the tyre wheel loads which are similar to those of a forklift truck of similar capacity. Having no floor rail allows the greater flexibility required by many production processes and removes a potential trip hazard. Standard rail-less Semi-Goliath cranes are available in single and double girder construction in capacities up to 15 ton.

Safety devices of Semi Gantry Crane

• Crane travel limit switch
• Weight overload protection device
• Lifting height limiter
• Low voltage protection function
• Phase sequence protection function
• Emergency stop function
• Wireless infrared detector for anti-collusion

Control Model of Semi Gantry Crane

Pendant Control
Remote Control
Cabin Control

FAQ About Semi Gantry Crane

Why should we choose a semi gantry crane?

• If the crane is used in the workshop, there are also uprights and supports, and the width of the workshop is larger than the crane span you require, we recommend you to choose a semi-gantry crane.
• When the gantry crane is used outdoors, near the workshop, and your workshop has enough strength to carry the crane, we recommend you to choose the semi-gantry crane, which can also save space.

Can you provide gantry crane spare parts?

Yes, as a gantry crane manufacturer, we supply all spare parts such as motors, hoists, rollers, wheels, grabs, hooks, tracks, walking beams, enclosed busbars, etc.

What are the delivery methods? How to ensure the safe delivery of goods?

We have rich export experience. Containers, bulk cargo, LCL, and flat racks are all ok for us. We will give you the suggested delivery method. There are reinforcements during packing and loading to ensure safe delivery.

Why Choose Yuantai Crane

• Tailor-made Crane Solutions
  The single girder gantry crane solutions of Yuantai Crane are customized according your real working situation. On the premise of meeting the requirements of use, we will save you the cost as much as possible.
• Quality Assurance
  Perfect quality control system, focusing on product quality. Products are the carrier of all services and trust.
  All crane products and components are passed ISO / CE certifications.
• Perfect service makes you worry-free
  Offer crane installation and maintenance service.
  Free crane operation training service for your staff.
  Up to 20 years of accessory support.

Tailored Semi-portal Crane Design

Our team of designers use the latest computerized technology to tailor every semi-portal crane system to the task in hand. Whether you’re an end user with a specific requirement for your workplace, or a trade client that is supplying a semi-portal crane for a third party – we have experience in designing semi-portal cranes of all sizes, any capacity and for use in a various sectors and industries.

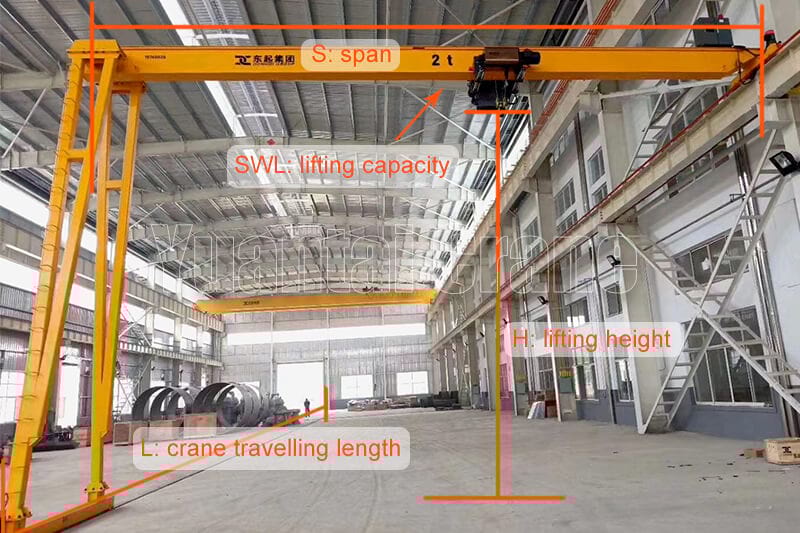

• Lifting capacity: _____ ton
• Span(S): _____ m
• Lifting height(H): _____ m
• Crane travelling legnth: _____ m
• Power supply (e.g., 380V 50Hz 3Phase):
• Control model: Pendant control? Remote control? Cabin Control?
• Detailed working conditions of the crane:
• Other requirements:
