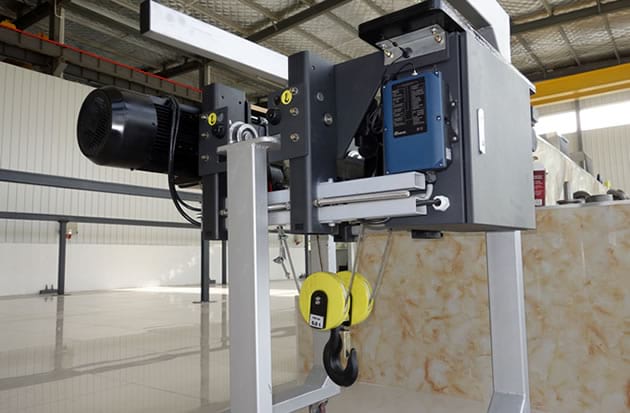

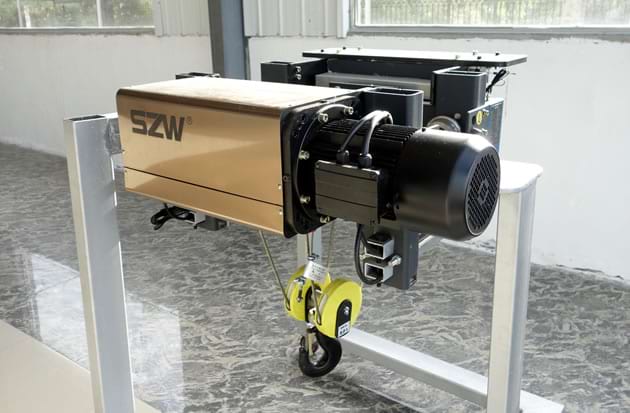

Low Headroom Electric Hoist for Qatar

Specifications

ND type electric wire rope hoist, design standards refer to GB, FEM, DIN and other industry-related standards, is a new generation of low-headroom European-style electric hoist designed and developed by Yuantai. Once the new product was launched, it triggered a strong reaction from the market. At present, the European standard electric hoist is gradually replacing the earlier domestic CD/MD type electric hoist, becoming the mainstream lifting mechanism in the industry. In the international market, customer feedback the hoists run stably, low failure rate, low maintenance cost, low noise, energy saving and high efficiency, compared with other electric hoists on the market, it is very cost-effective.

Scope of Hoist

Lifting weight: 0.5-20t
Lifting height: ≤70m
Voltage: 3Phase 50/60 Hz

Advantage

Compact structure, light weight, small wheel pressure, maximum use of space, comprehensive cost performance
Modular design, low maintenance costs, complete spare parts service
Adopt low clearance design to save building height for customer workshop design, increase workshop hoisting area and save construction cost
Selected quality parts, low noise, safe and reliable, durable
Precise positioning, efficient operation, high sustainable work efficiency
Safe and reliable, operational monitoring, easy to repair

Parameters

Lifting Capacity	Working class	Model			Weight(kg)
Lifting Capacity	Working class	Lifting height(m)	Lifting speed(m/min)	Travelling speed(m/min)	Weight(kg)
2	M4	6/9/12/15/18	0.5-5.0	2.0-20	450
	M4	6/9/12/15/18	0.65-6.5	2.0-20	450
	M4	6/9/12/15/18	0.8-8.0	2.0-20	460
3.2	M4	6/9/12/15/18	0.5-5.0	2.0-20	454
	M4	6/9/12/15/18	0.65-6.5	2.0-20	454
	M4	6/9/12/15/18	0.8-8.0	2.0-20	465
5	M4	6/9/12/15/18	0.5-5.0	2.0-20	511
	M4	6/9/12/15/18	0.65-6.5	2.0-20	511
	M4	6/9/12/15/18	0.8-8.0	2.0-20	550
10	M4	6/9/12/15/18	0.5-5.0	2.0-20	810
	M4	6/9/12/15/18	0.55-5.5	2.0-20	850
	M4	6/9/12/15/18	0.7-7.0	2.0-20	900
16	M4	6/9/12/15/18	0.4-4.0	2.0-20	1310
16	M4	6/9/12/15/18	0.5-5.0	2.0-20	1420
