Qatar Single Girder Gantry Crane for Sale

Single girder gantry crane is a type of gantry crane with a single girder/beam structure on the top and travels on the crane rails. Usually, it equips with electric hoist as lifting mechanism, and the max lifting capacity is up to 20 tons.

Price: $2200-$58000 / set Get Latest Price
Download Video Show

Specifications

Single Girder Gantry Crane Introduction

Single girder gantry crane is a type of gantry crane with a single girder/beam structure on the top and travels on the crane rails. Usually, it equips with electric wire rope hoist as lifting mechanism, sometimes equips with electric chain hoist, according the working conditions. The electric hoist hangs under the main beam and travels along with it. The main girder of single girder gantry crane is supported by one or two legs which are connected with end beams, so the whole gantry crane system can travel along the crane rails by the end carriages.

As the max lifting capacity of the electric hoist for single girder crane is 20 tons, the lifting capacity of single girder gantry crane is also under 20 tons. But single girder gantry cranes can do most of the work no matter indoor and outdoor, which is why single girder gantry cranes are the most popular gantry cranes.

As you know, for industrial gantry cranes, they are able to move in six directions, left and right, up and down, forward and backward. The electric hoist under the main beam moves in left and right directions, when lifting and lowering, the hook of the hoist move up and down and the whole gantry crane systems move forward and backward.

If the single girder gantry crane travels long distance, it will be equipped with a cable reel. Long travel means long power feeding system, gantry crane cable reel can effectively solve the problem of retracting and releasing the power supply cable.

Sometimes you can see the cantilevers on the left and right of the single girder gantry crane main beam, and sometimes just one on the left or right. The cantilevers length is not included in crane span, if you need to lift loads which are out of the crane rails, a cantilever is a good choice, the electric hoist can travel across the legs. Of course, the cantilever is not infinitely long, it depends on the span of the whole gantry crane.

Main Composition of Single Girder Gantry Crane

Gantry Crane Main Girder

Main Girder

Q235/Q345 carbon structural steel. Strong box type with standard deflection

Support Legs

Support Legs

Q235/Q345 carbon structural steel. Strong box type with three coats of paint

Gantry Crane End Carriages

Gantry Crane End Carriages

Q235/Q345 carbon structural steel. Nanjing brand travelling motor

Electric Hoist

Electric Hoist

High quality single speed and double speed electric hoist

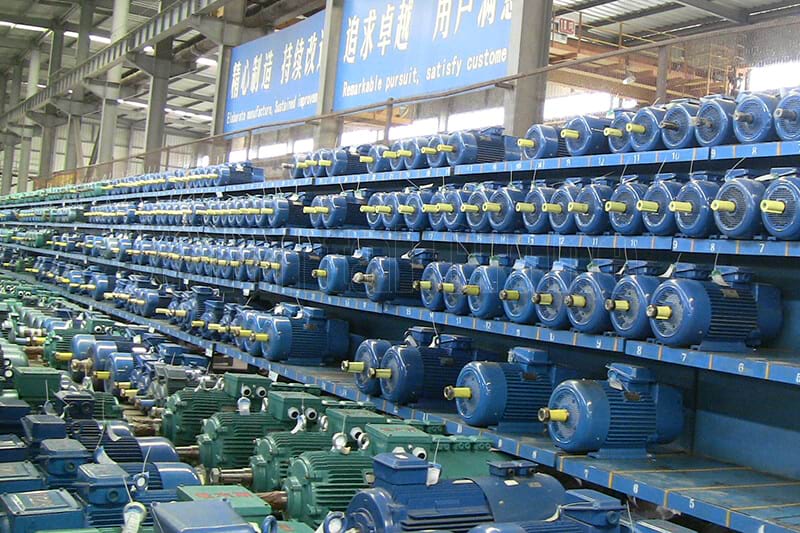

Gantry Crane Travelling Motor

Gantry Crane Travelling Motor

Nanjing special crane motor

Gantry Crane Wheels

Crane Wheels

Vacuum casting, intermediate hardening by top technical machinery

Benefits of Single Girder Gantry Crane

  • High site utilization rate, large operating range
  • Wide adaptability and strong versatility
  • High reliability components
  • Excellent operating performance
  • Suitable for general work
  • Suitable for outdoor and indoor

Application of Single Girder Gantry Crane

As mentioned above, the single girder gantry crane can do most of the work no matter indoor and outdoor with a lifting capacity up to 20 tons. For indoor use, it can be used in workshops, warehouses, factories and various production lines for materials handling, and for outdoor use, it can be the main lifting equipment with special lifting tools for goods loading and unloading, stone transferer, material handling, steel yards, mines, concrete industries, ports and shipbuilding, etc.

Types of Single Girder Gantry Crane Yuantai Supply

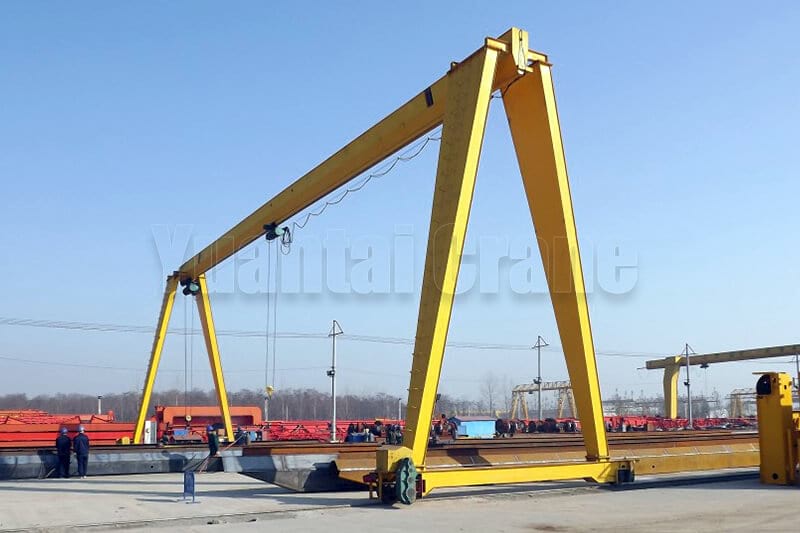

Box girder type single girder gantry crane

Box girder type single girder gantry crane

  • Widely used in factory, warehouse, stockyard, etc.
  • Lifting Capacity: 1~20t
  • Span: 6~30m
  • Lifting Height: 6/9/12/18m (according your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Gantry Crane Price

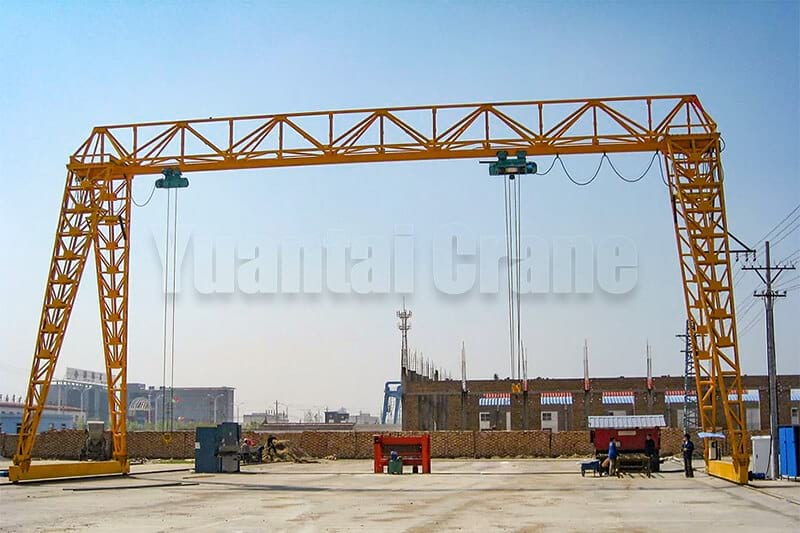

Truss girder type single girder gantry crane

Truss girder type single girder gantry crane

  • Widely used in stockyard, steel yard, port, etc.
  • Lifting Capacity: 1~20t
  • Span: 6~30m
  • Lifting Height: 6/9/12/18m (according your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Gantry Crane Price

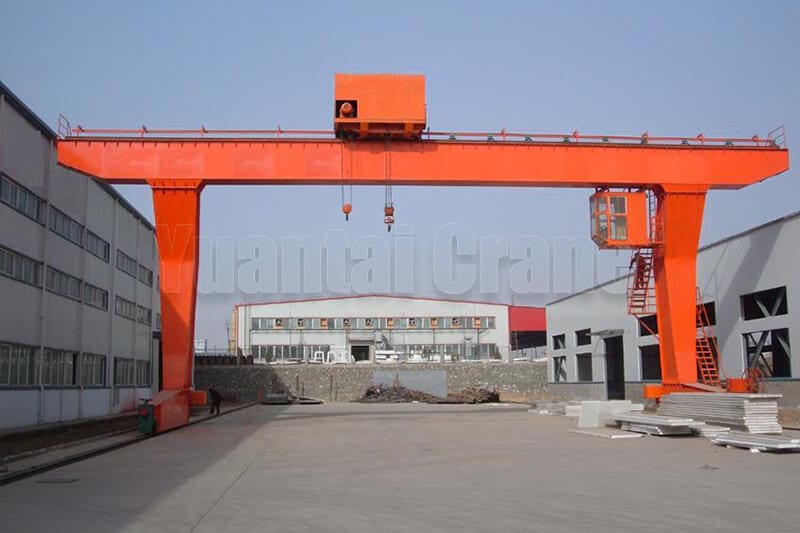

L type single girder gantry crane

L type single girder gantry crane

  • Widely used in outdoor, stockyard, etc.
  • Lifting Capacity: 5-32t
  • Span: 10~35m
  • Lifting Height: 6/9/12/18m (according your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A5, A6
  • Ambient Temperature: -25~40℃
Get Gantry Crane Price
Single girder semi gantry crane

Single girder semi gantry crane

  • Widely used in factory, warehouse, stockyard, etc.
  • Lifting Capacity: 1~20t
  • Span: 7.5~28.5m
  • Lifting Height: 6/9/12m (according your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
Get Gantry Crane Price

Single Girder Gantry Crane Cantilevers

Single girder gantry crane with left and right cantileversSingle girder gantry crane with left and right cantilevers
Single girder gantry crane with one (left or right) cantileverSingle girder gantry crane with one (left or right) cantilever
Single girder gantry crane with no cantileversSingle girder gantry crane with no cantilevers

Hoist Option for Single Girder Gantry Crane

CD1 Single Speed Electric Wire Rope HoistCD1 Single Speed Electric Wire Rope Hoist
MD1 Double Speed Electric Wire Rope HoistMD1 Double Speed Electric Wire Rope Hoist
ND / NR European-spec Electric Wire Rope HoistND / NR European-spec Electric Wire Rope Hoist

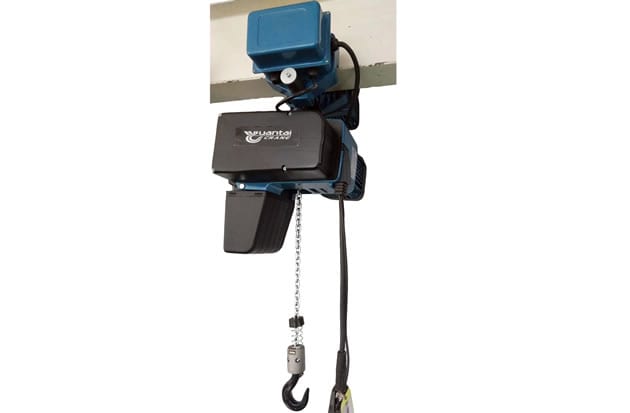

HHBB / WBH Electric Chain HoistHHBB / WBH Electric Chain Hoist
YTOC European-spec Electric Chain HoistYTOC European-spec Electric Chain Hoist

Comparison of Different Types Single Girder Gantry Crane

Box girder type single girder gantry crane Truss type single girder gantry crane L-type single girder gantry crane
Box girder type single girder gantry crane Truss type single girder gantry crane L-type single girder gantry crane
  • Suitable for indoor and outdoor
  • Strong box type
  • The gantry cranes can be designed with double cantilevers, single cantilever or no cantilever
  • The gantry crane is equipped with a wire rope hoist, which travels under the main girder
  • The main beam and outriggers of this type gantry crane are all truss type, which is more suitable for open areas and can withstand strong wind pressure.
  • This type gantry cranes can be designed as full truss or as main girder with truss, supported by box girder or vice versa.
  • Same with the box girder gantry crane, this type gantry crane is also equipped with a wire rope hoist, which travels under the main girder
  • This type gantry crane outriggers are "L" shaped, which is convenient for large-sized cargoes to be moved from the intermediate position to the cantilever without any size restrictions.
  • The gantry crane can be equipped with two lifting mechanisms, one is an electric wire rope hoist, which runs under the main beam, and the other is a trolley, which runs on the main beam.

Safety Protection Devices of Yuantai Single Girder Gantry Crane

  • Overload limiter
  • High-quality, long-term use, impact-resistant polyurethane buffer
  • Crane travel limit switch
  • Loss of voltage protection, phase error protection
  • Emergency stop system, braking system
  • Lifting height limiter

FAQ About Single Girder Gantry Crane

Why should we choose a gantry crane?

If your workshop has no column, or you just rent a workshop, we recommend you to choose the gantry crane, which can save the cost of the column and is more convenient to install and disassemble.
When the crane is used outdoors, usually, a gantry crane is more suitable.

Which type of gantry crane is suitable for us?

If the gantry crane is used in an open area and the wind is very strong, you'd better choose a lattice gantry crane (truss type gantry crane).
If the cargo size is large and you need the gantry crane has a cantilever, you'd better choose an L-type gantry crane.

I want to use a gantry crane, but the foundation has already been established. Can I avoid breaking the ground to install the gantry crane?

Yes, once the concrete width of the ground exceeds 20 cm, then there is no need to excavate the ground. Just lay the belt steel plate, bolt it to the concrete floor, and then weld the rails on it.

Can you provide gantry crane spare parts?

Yes, as a gantry crane manufacturer, we supply all spare parts such as motors, hoists, rollers, wheels, grabs, hooks, tracks, walking beams, enclosed busbars, etc.

Why Choose Yuantai Crane

Yuantai Crane

  • Tailor-made Crane Solutions
    The single girder gantry crane solutions of Yuantai Crane are customized according your real working situation. On the premise of meeting the requirements of use, we will save you the cost as much as possible.
  • Quality Assurance
    Perfect quality control system, focusing on product quality. Products are the carrier of all services and trust.
    All crane products and components are passed ISO / CE certifications.
  • Perfect service makes you worry-free
    Offer crane installation and maintenance service.
    Free crane operation training service for your staff.
    Up to 20 years of accessory support.

Contact Yuantai Crane With Your Request

We are excited for the opportunity to work with you and find the right solution for your problem, no matter how complex or unique. We'll work with you from the very beginning of your project to the very end while we continue to provide you with support after it is finished. For getting the gantry crane solution that meets your working conditions, please send us a detailed request as follow:

single girder gantry crane parameters

  • Lifting capacity: _____ ton
  • Span(S): _____ m
  • Lifting height(H): _____ m
  • Left cantilever length: _____ m
  • Right cantilever length: _____ m
  • Crane travelling legnth: _____ m
  • Power supply (e.g., 380V 50Hz 3Phase):
  • Control model: Pendant control? Remote control? Cabin Control?
  • Detailed working conditions of the crane:
  • Other requirements:

Parameters

  • Lifting Capacity: 1~20t
  • Span: 6~30m
  • Lifting Height: 6/9/12/18m (according your needs)
  • Voltage: 220-660V 50/60Hz 3Phase
  • Working Class: A3, A4
  • Ambient Temperature: -25~40℃
